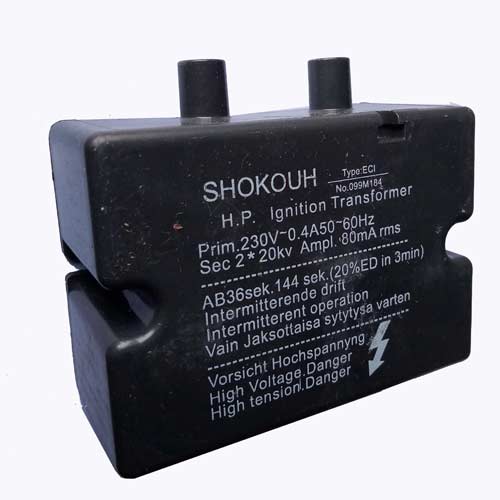

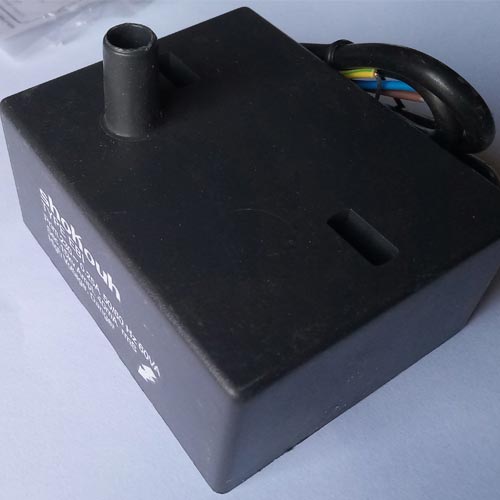

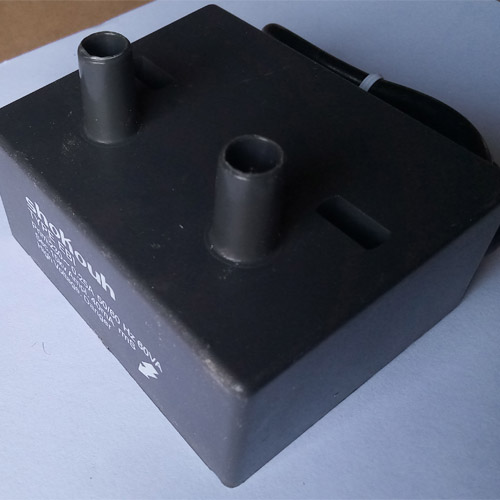

The shokouh high frequency ignition transformer has been designed for use with oil, gas and dual fuel burners of small to medium rating and has been produced in 6 models namely “Technical data table”.

The general version has been designed on any type of burner, from the dimension point of view.
Due to low power consumption and very few internal losses this transformer can continue it’s operation, several times more than necessary for the burner.
According to the type of design, this transformer has outstanding
All types can be supplied with filter to minimize the emission of electromagnetic interference

In order to prevent the radio interferences, the outlets cables shall be selected from suitable type with high voltage, and avoid unnecessary length.
Spark gap at the ignition electrode shall be adjusted on the basis of burner type and table of
Other cables should not run as close together with the transformers
Because of high voltage of outlets do not touch the transformer or put conductive objective near to the unit during

Model	Automatic	Automatic case	General
Supply voltage	220v ± 10%	220v ± 10%	220v ± 10%
Supply frequency	50HZ ± 20%	50HZ ± 20%	50HZ ± 20%
Power consumption	35VA	35VA	20VA
Secondaty voltage	2×7.5kv	2×7.5kv	2×7kv
Secondary current (rms)	50 mA	50 mA	40 mA
Output frequency	20khz	20khz	20khz
Working ombient temp	-100c- +600c	-100c- +600c	-100c- +600c
Switch on time (rating)	50% ED in 4 minutes	33% ED in 3 min	33% ED in 3 min
Mountening attiude	Any	Any	Any
Cable length and type	H.V cable 1.00 mm	H.V cable 1.00 mm	H.V cable 1.00 mm
Max spark gab (mm)	3-6 mm	3-6 mm	3-6 mm
Weight	320 gr	315 gr	280 gr
H.T cable only	Silicon insulated, tepeature rating 1750c	Silicon insulated, tepeature rating 1750c	Silicon insulated, tepeature rating 1750c

Model	Cof1	Cof2	Permanent
Supply voltage	220v ± 10%	220v ± 10%	220v ± 10%
Supply frequency	50HZ ± 20%	50HZ ± 20%	50Hz ± 20%
Power consumption	20VA	20VA	50vA
Secondaty voltage	1×14kv	2×7kv	2×7.5kv
Secondary current (rms)	40 mA	40 mA	40 mA
Output frequency	20khz	20khz	20khz
Working ombient temp	-100c- +600c	-100c- +600c	-100c- +600c
Switch on time (rating)	33% ED in 3 min	33% ED in 3 min	95% ED in 6 hour
Mountening attiude	Any	Any	Any
Cable length and type	H.V cable 1.00 mm	H.V cable 1.00 mm	H.V cable 1.00 mm
Max spark gab (mm)	3-6 mm	3-6 mm	3-6 mm
Weight	250 gr	250 gr	320 gr
H.T cable only	Silicon insulated, tepeature rating 1750c	Silicon insulated, tepeature rating 1750c	Silicon insulated, tepeature rating 1750c
